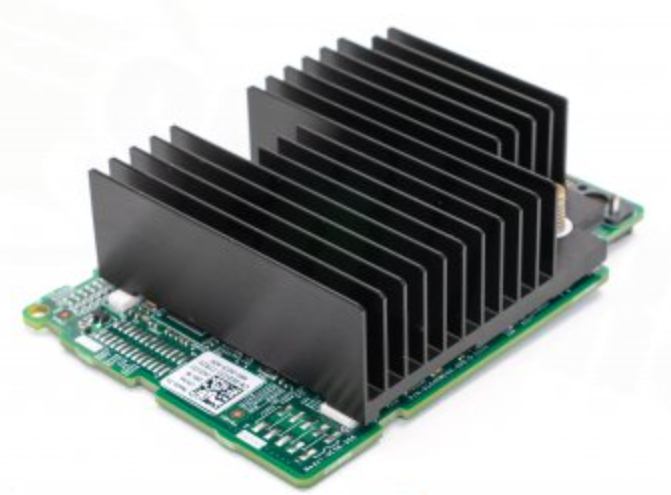

Dell PERC H330 12Gbps Mezzanine RAID Controller TD1CR FG0JC

Dell PERC H330 12Gb/s SAS Mezzanine RAID Controller (Certified Refurbished)

The Dell PERC H330 mezzanine controller brings entry level hardware RAID (0, 1, 5, 10, 50) to Dell's mezzanine based platforms. It connects eight internal ports across two x4 SAS connectors, supporting 12Gb/s SAS and 6Gb/s SATA drives over a PCIe 3.0 x8 interface. The H330 is a cacheless controller, a good fit for straightforward RAID 1 and RAID 10 boot and data volumes; workloads that lean on RAID 5 or RAID 50 write performance are better served by a cached PERC.

Compatible part numbers: TD1CR, 0TD1CR, FG0JC, 0FG0JC. These Dell part numbers identify the same physical part; you will receive a functionally identical part and the printed part number may be any of the equivalents listed.

Compatible with: Dell C6420 (C6400 enclosure) and Dell R740XD2. This is the mezzanine form of the H330 and is not interchangeable with the rack Mini Mono or PCIe adapter versions.

Why buy from Server Parts Fast: Every controller is received, bench-tested or inspected as appropriate, audited, and certified refurbished, with its serial number recorded for warranty tracking. Each part ships with a 1 year warranty and fast, knowledgeable support.

• 12Gbps SAS interface with 6Gb/s SATA support across eight internal ports
• Hardware RAID 0, 1, 5, 10, 50 for entry level data protection
• Mezzanine form factor for Dell C6420 sleds and the R740XD2 controller slot
• Certified Refurbished: received, inspected, tested, and audited
• 1 Year Warranty with serial number recorded for warranty tracking
